The main bike tire valve types are Presta, Schrader, and Dunlop/Woods. Presta valves are narrow and common on road, gravel, and many higher-pressure bikes. Schrader valves are wider and match car-style pump heads. Dunlop valves are common in some markets. Tubeless valves are usually Presta-style but must seal against the rim. This guide is built for the rider who wants the practical answer first, then enough detail to avoid the common mistake. The goal is not to memorize bike-shop language. The goal is to make the next ride easier, safer, and less confusing.
The Fast Answer
The main bike tire valve types are Presta, Schrader, and Dunlop/Woods. Presta valves are narrow and common on road, gravel, and many higher-pressure bikes. Schrader valves are wider and match car-style pump heads. Dunlop valves are common in some markets. Tubeless valves are usually Presta-style but must seal against the rim. If you remember only one thing, make the change before the bike is under stress. That might mean shifting before a hill, measuring before buying a child’s bike, opening a Presta valve before pumping, or stopping before a chain problem becomes a crash risk.
This topic has weak or scattered search results because many ranking pages answer only one version of the problem. Ahrefs showed Michelin, Bicycling, bike shop guides, and Canyon ranking. Icebike should beat them with pump-fit, rim-hole, tubeless, adapter, and troubleshooting decision assets. Icebike’s value is the decision process: what to check first, what to ignore, when to stop, and which related Icebike guide solves the next problem.
Decision Chart
Use this chart first. It turns the search query into a practical diagnosis instead of a generic list of tips.
| Situation | Likely answer | What to do |
|---|---|---|
| Narrow metal stem with lock nut | Presta | Open top nut before pumping |
| Wide car-style stem | Schrader | Common on hybrids, kids bikes, and cruisers |
| Valve body with replaceable core in some markets | Dunlop/Woods | Check pump compatibility |
| Presta stem with rubber base | Tubeless valve | Needs airtight rim tape and sealant |
| Pump does not fit | Wrong head or adapter | Use reversible head or adapter |

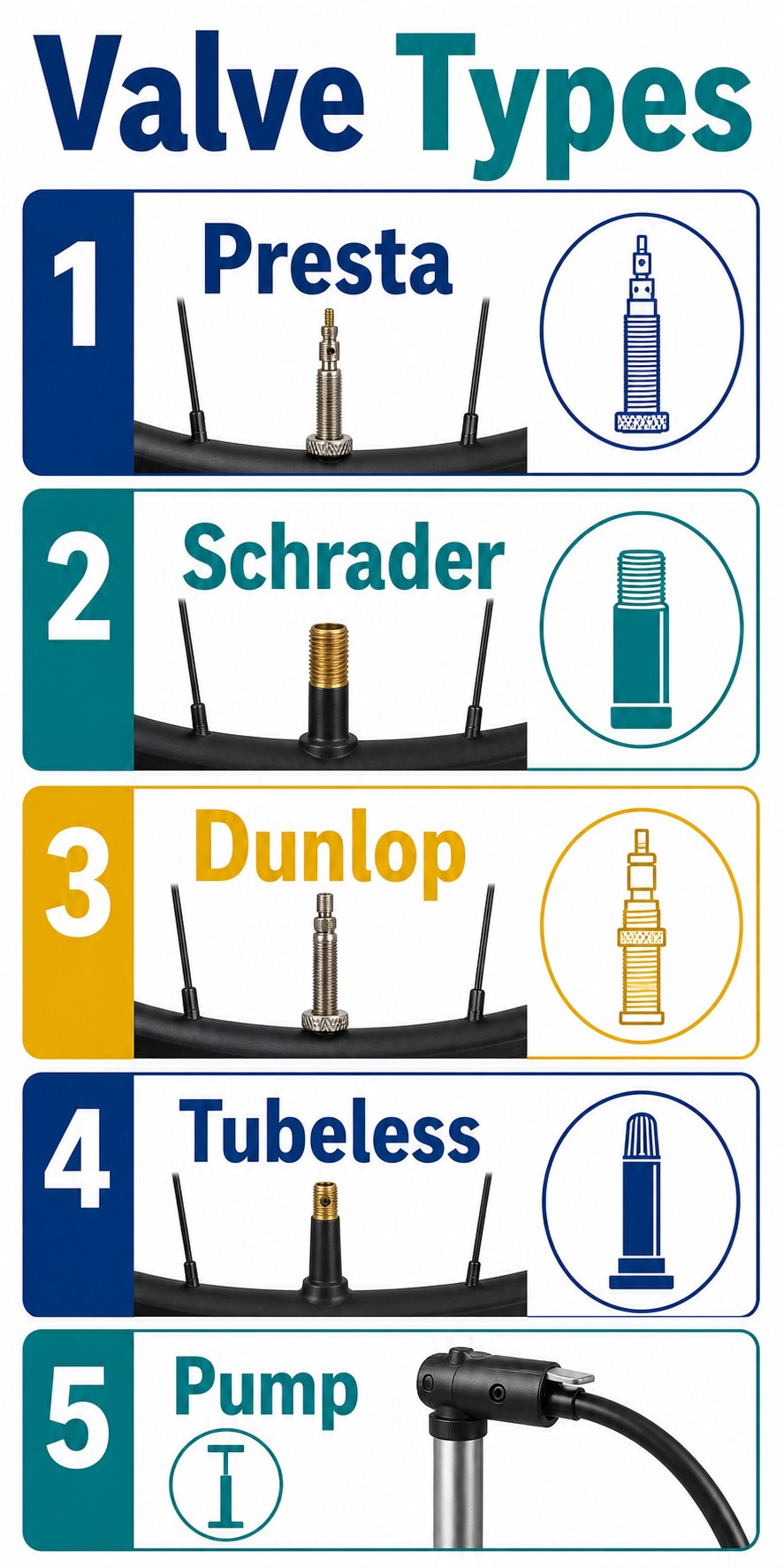

Visual Guide
The graphic below condenses the main decision path into a narrow-column visual for the article. Use it as the quick reminder, then use the tables and examples for the edge cases.
Step-By-Step Method
Start with the low-risk check, then move toward the fix. This order keeps a simple issue from turning into unnecessary parts, unsafe riding, or a confusing adjustment trail.
- Look at the valve width before removing the cap.
- Check whether the rim hole matches the tube or tubeless valve.
- Use a pump head that matches the valve or a secure adapter.
- For Presta, open the tiny top nut before inflating.
- For tubeless, inspect the valve core, seal, tape, and sealant if pressure leaks.
Work slowly and change one thing at a time. A beginner can usually learn the pattern in a few minutes, but the bike still needs a calm test area. Do not make the first test happen in fast traffic, on a steep hill, or with a child already frustrated.
Common Mistakes
Most problems in this topic happen because the rider skips the first check or copies advice from a different bike. Use this mistake table as a quick self-audit before replacing parts, buying the wrong size, or forcing a component.
| Mistake | Better choice |
|---|---|
| Forcing a Schrader tube into a Presta rim hole | The valve may not fit and can damage the rim. |
| Forgetting the Presta top nut | Air will not enter a closed Presta valve. |
| Using a loose adapter | A poor adapter seal causes hissing and false pump readings. |
| Confusing tubeless valves with normal tubes | Tubeless needs rim tape and sealant. |
| Buying tubes by valve only | Match tire size, valve length, and rim depth too. |
When To Stop And Fix The Bike First
Some issues are annoying. Others are stop-ride issues. If the problem affects braking, steering, chain control, tire security, helmet protection, or a child’s ability to stop, pause the ride and fix the setup before continuing.
- The valve is tearing at the tube.
- The valve hole edge cuts the stem.
- The valve core leaks after tightening.
- The tubeless valve base will not seal.
This stop-rule section is part of the content moat for this batch. Many top results tell riders what to do when things go right. Icebike also needs to say when the rider should stop, inspect, resize, or ask a mechanic.
Real-World Examples
- A deep road rim may need a longer Presta valve or extender even when the tire size is correct.
- A gas-station air hose usually fits Schrader directly but needs a Presta adapter for narrow road valves.
- A tubeless tire that leaks at the valve base may need tape or valve reseating, not more pressure.
These examples are deliberately plain. The reader should be able to recognize their own ride, garage, kid-bike setup, or commuter problem without translating a race mechanic’s instructions.
Troubleshooting Matrix
Use this second matrix when the first fix does not solve the problem. It is designed to stop the common loop where a rider repeats the same action, gets the same failure, and then assumes the whole bike is wrong.
| What still feels wrong | What it usually means | Next move |
|---|---|---|
| The problem returns immediately | The root cause was not fixed | Go back to the decision chart and isolate one variable |
| The bike works in the stand but not on the road | Load, rider weight, or real pedaling force changes the result | Test under gentle real riding before traffic |
| The fix works only once | A part may be worn, loose, mis-sized, or slipping | Inspect the related part before repeating the adjustment |
| The rider feels less confident after the change | The setup may be technically correct but wrong for current skill | Choose the safer beginner setting first |
| The issue appears after a new part | Compatibility or installation may be the problem | Compare the new part against the old size and setup |
The important detail is sequence. Start with the simplest observation, then move toward parts, measurements, or mechanic help. Guessing in the other direction wastes time and can make the bike less safe.
Beginner, Commuter, Kid, And Weekend Variations
The same advice changes slightly by rider. A confident adult on a quiet path can tolerate more trial and error than a child learning to stop, a commuter riding in traffic, or a rider fixing a problem at the roadside. Use the version that matches the ride, not the version that sounds most advanced.
| Rider type | Best version of the advice |
|---|---|
| New adult rider | Prioritize control, repeatable steps, and low-risk test rides |
| Daily commuter | Favor reliability, lights/traffic safety, and a setup that works when tired |
| Kid or family ride | Fit, stopping, and confidence matter more than speed or perfect efficiency |
| Weekend fitness rider | Use the guide to remove friction before longer rides |
| Roadside repair | Do only the safe temporary fix, then inspect properly at home |
This is one place Icebike can beat generic search results. Many competitor pages answer the ideal version of the question. Riders need the version that works with a nervous child, a dark commute, a loaded bike, or a repair made with cold hands.
What To Check After The First Ride
Do not judge the setup only while standing next to the bike. The first short ride tells you whether the advice held up under real weight, vibration, braking, and steering. Stop after five to ten minutes and inspect the part or fit point again.
- Recheck the exact part or fit point you changed.
- Look for movement, slipping, rubbing, noise, pressure loss, or renewed hesitation.
- Ask whether the bike feels calmer, not merely different.
- Confirm the rider can stop, steer, and restart confidently.
- Write down the setting, measurement, pressure, or adjustment that worked.
If the problem is still present after a careful first ride, do not keep adding random changes. Return to the tables above, isolate the next likely cause, and use the related Icebike guide for the deeper repair.
Tools, Fit, And Setup Checklist
The checklist changes slightly by topic, but the principle is the same: use the simplest reliable tool, verify the setup, and do not let one shortcut hide a bigger problem.
| Check | Why it matters |
|---|---|
| Identify the exact bike part or fit point | Prevents fixing the wrong problem |
| Use the correct tool or measurement | Reduces damage and guesswork |
| Make one change at a time | Shows what actually solved the issue |
| Test in a safe place | Keeps a small mistake from becoming a crash |
| Record the working setup | Makes the next ride faster to prepare |
How This Connects To Icebike’s Existing Guides
This article is not meant to stand alone. Use it as the entry point, then move to the deeper Icebike page that matches the next problem.
- how to pump a bike tire
- presta valve adapter
- bike tire pressure calculator
- bike tire size chart
- bike tire pressure loss
Sources And Evidence
Visible factual support for this guide comes from practical source material and Icebike’s related archive pages. Competitor pages were used for gap analysis only, not as public evidence.
Michelin bike tire valve guide Schwalbe inflation pressure guidance
Final Check Before You Ride
Before you call the setup done, run one short test in a low-risk place. The bike or child should feel calmer after the change. If the problem gets worse, undo the last change and return to the decision chart. If the issue affects control or safety, stop and repair it before riding in traffic.
